palPrismaticLink Class Reference

#include <palLinks.h>

Inheritance diagram for palPrismaticLink:

List of all members.

Public Member Functions
virtual void	Init (palBodyBase *parent, palBodyBase *child, Float x, Float y, Float z, Float axis_x, Float axis_y, Float axis_z)

---

Detailed Description

A Prismatic Link A prismatic link (also known as a slider) provides one degree of translational freedom for the constraint. The link connects two bodies, at a given position, and extends along a specified axis.

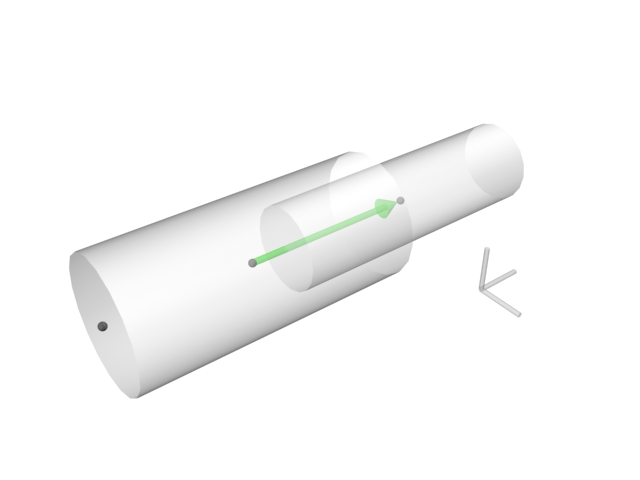

The diagram indicates the central point of two geometries. The arrow indicates the axis about which the link extends. The point the arrow extends from indicates the starting position for the slider.

---

Member Function Documentation

void palPrismaticLink::Init	(	palBodyBase *	parent,
		palBodyBase *	child,
		Float	x,
		Float	y,
		Float	z,
		Float	axis_x,
		Float	axis_y,
		Float	axis_z
	)			[virtual]

Initializes the primsatic link.

Parameters:

	parent	The "parent" body to connect
	child	The "child" body to connect
	x	The x position of the link's center
	y	The y position of the link's center
	z	The z position of the link's center
	axis_x	The axis vector which the link exteneds from. (x)
	axis_y	The axis vector which the link exteneds from. (y)
	axis_z	The axis vector which the link exteneds from. (z)

---
