palBoxGeometry Class Reference

#include <palGeometry.h>

Inheritance diagram for palBoxGeometry:

List of all members.

Public Member Functions
virtual void	Init (palMatrix4x4 &pos, Float width, Float height, Float depth, Float mass)
Protected Member Functions
virtual Float *	GenerateMesh_Vertices ()
virtual int *	GenerateMesh_Indices ()

---

Detailed Description

A box geometry This represents a box (eg: cube, rectangular prism) at a given position, with a given width, height, depth and mass.

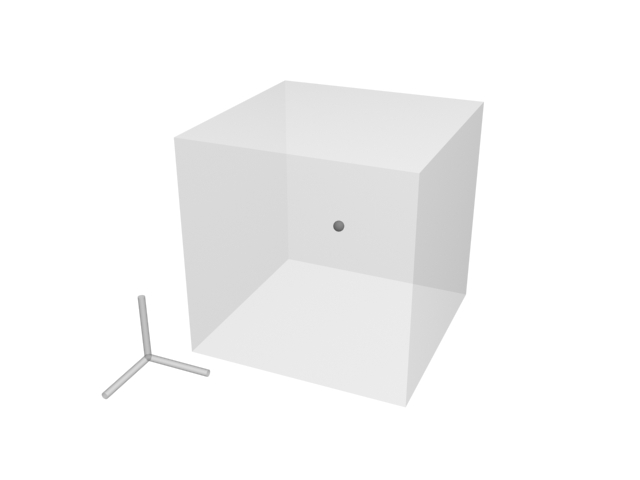

The diagram shows the central point of the box, as well as the width,height,and depth of the box.

---

Member Function Documentation

int * palBoxGeometry::GenerateMesh_Indices

(

)

[protected, virtual]

Generates a set of corresponding indicies to represent the approximation to the geometry.

Reimplemented from palGeometry.

Float * palBoxGeometry::GenerateMesh_Vertices

(

)

[protected, virtual]

Generates a set of vertices that represent an approximation to the geometry. This can be used for debug rendering, or generating the mesh for a convex object representation for some physics engines

Returns:

An array of Floats (3 Floats is 1 Vertex), or null if the functionality is unsupported or there is an error

Reimplemented from palGeometry.

void palBoxGeometry::Init	(	palMatrix4x4 &	pos,
		Float	width,
		Float	height,
		Float	depth,
		Float	mass
	)			[virtual]

Initializes the box The center of the box is specified by its position.

Parameters:

	pos	The transformation matrix representing the position and orientation of the box
	width	The width of the box
	height	The height of the box
	depth	depth The depth of the box
	mass	The box's mass

---
